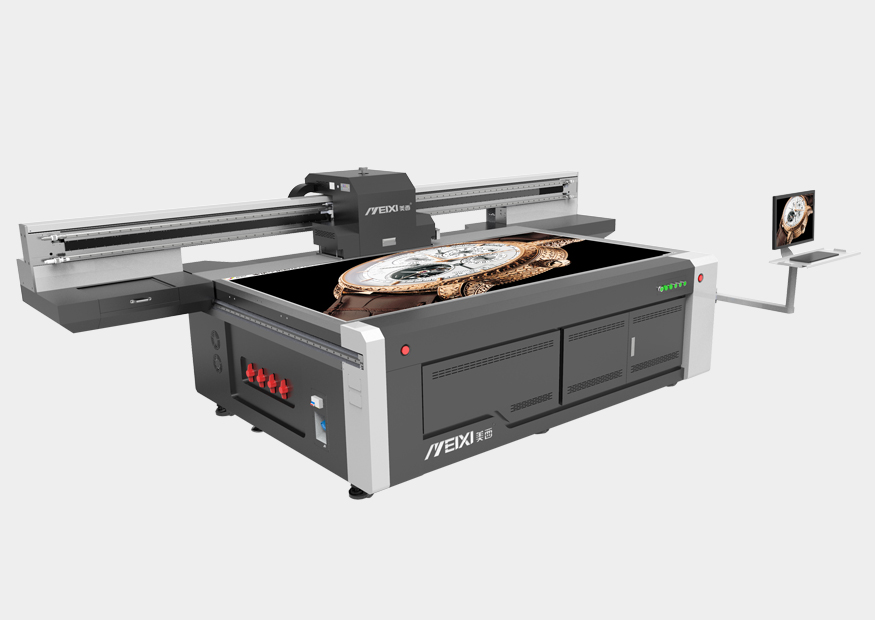

Meixi MX-3220UV GEN6 Flatbed UV Printer Use 2-10Pcs Ricoh Gen6 Printhead. 4/6/8 Colors High Resolution Print is Available to Satisfy Clients’ Requirement. High Speed Production Mode Can Print 75 Sqm/Hr.
MX-3220UV GEN6 Flatbed Printer
|Print Head||Ricoh Gen6 Grey Scale Micro Piezo Printhead|
|Numbers of Print Head||2~10 PCs|
|Carriage Lifting Function||Carriage Height Automatic Adjustment, Intelligent Detection of Material Thickness|
|Ink Type||Environment Friendly UV Curing Ink|
CMYK / CMYK, LC, LM + White + Varnish
|Volume of Ink Tank||2000ml Bulk Ink Supply System|
|Ink Supply System||Double Negative Pressure System|
|Ink Monitoring System||Automatic Ink Alarm System|
Standard: PhotoPrint. Print Factory and Onyx Optional.
Print File Format
|TIFF, JPEG, PDF, EPS, PNG, AI, BMP, etc.|
|Color Management||ICC Based; Density & Curves Adjustable|
|Working Environment Temperature||20C-35C (68F-95F)|
|Working Environment Humidity||35%-65%Rh|
High Speed Mode 75Sqm/H

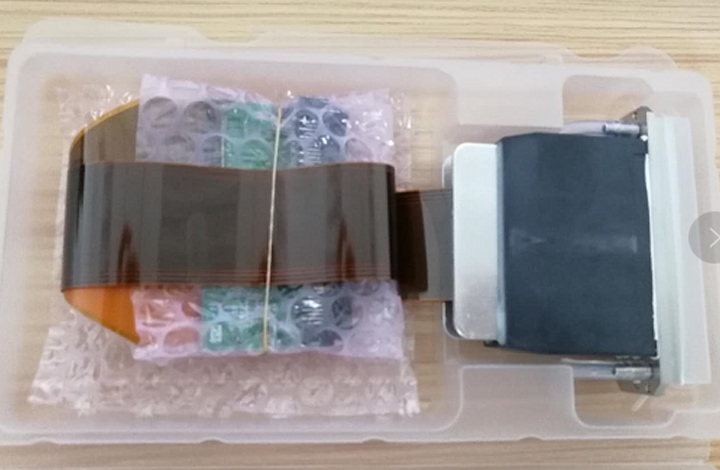

MEIXI MX-3220UV GEN6 Flatbed UV Printer use Ricoh GEN6 industrial printhead, the advantage of this printhead: long life, high precision, wear resistance, low plugging rate; can choose different combinations of ink droplets according to the printed material, printing or standby with automatic flash spray function, can achieve a day without interruption to keep the nozzle open, always in good working condition.

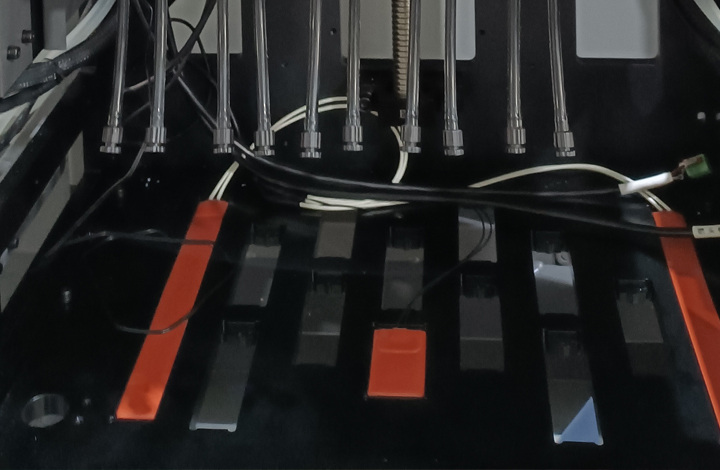

MEIXI MX-3220UV Flatbed UV Printer use 4 Rows Print Carriage with Heating. 4 Rows total 10Pcs Head Position for GEN6. Printer has 8 Rows Ink Pipe, 5 Ink Tanks and 5 Secondary Ink Cartridge as standard. Customer can choose CMYK / CMYK, LC, LM + W + V according to requirements.The cartridges are temperature-adjustable and can easily cope with various external temperatures.

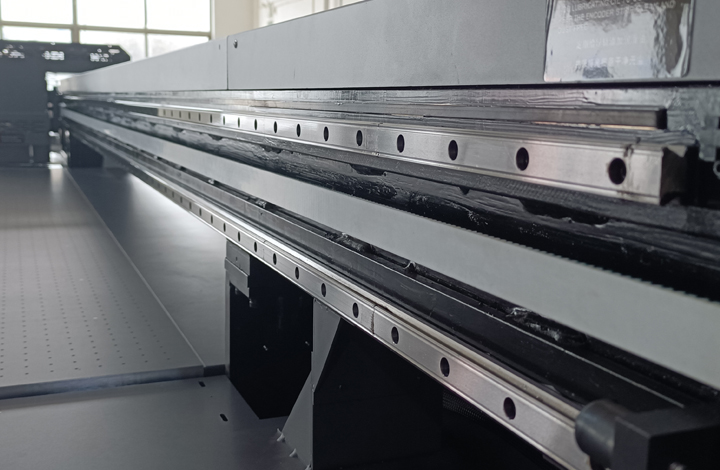

MEIXI MX-3220UV GEN6 Flatbed UV Printer use of double THK linear guide makes the equipment run smoothly, long service life, no maintenance under normal working environment within ten years long life; greatly reduce the noise generated by the equipment in the process of high-speed movement, noise can be controlled within 40 decibels.

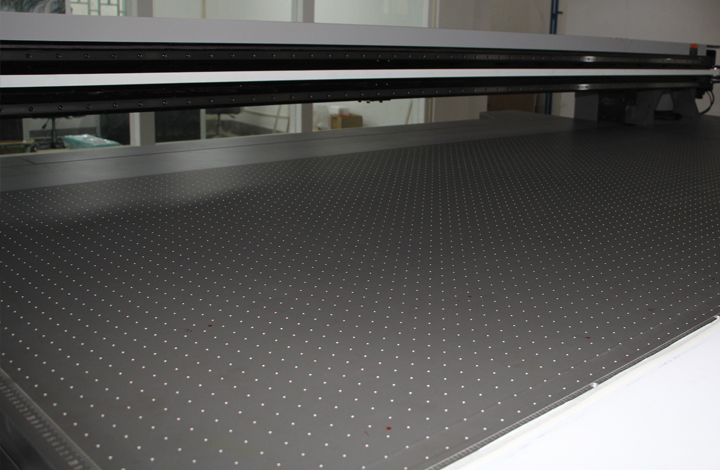

TMEIXI MX-3220UV GEN6 Flatbed UV Printer use Integrated honeycomb platform, hard oxidation process on the surface, 2.2KW silent fan, 5 sections of zoning control. It is easy for the operator to operate the ball valve during the use of the machine, and the personnel do not need to move to the side of the machine to reduce the movement of personnel.

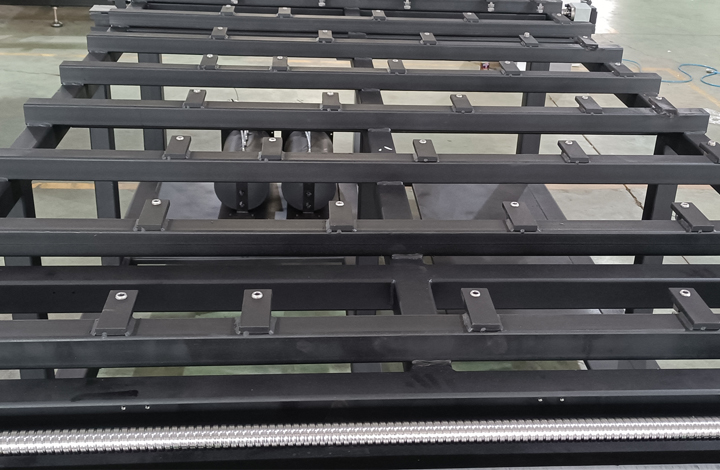

MEIXI MX-3220UV GEN6 Flatbed UV Printer frame is all quenched and stress relieved to ensure that the accuracy of the machine will not be lost during long-term operation, so that the service life of the machine is 5-6 times higher than that of an ordinary bed. The bed is processed by high precision CNC gantry milling machine to ensure the geometric accuracy of the equipment. All the installation holes of the equipment are completed by machining center in one time, which ensures the accuracy of the total assembly of the equipment.

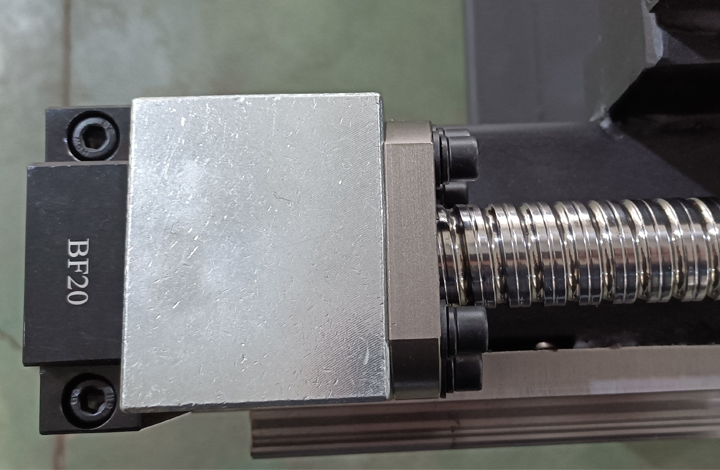

MEIXI MX-3220UV GEN6 Flatbed UV Printer Adopt grinding screw drive control device, which can greatly improve the inking accuracy and make the band streaks generated by inking error significantly reduced; configure high-speed silent imported screw, high precision, low noise, wear resistance, to ensure accurate positioning.

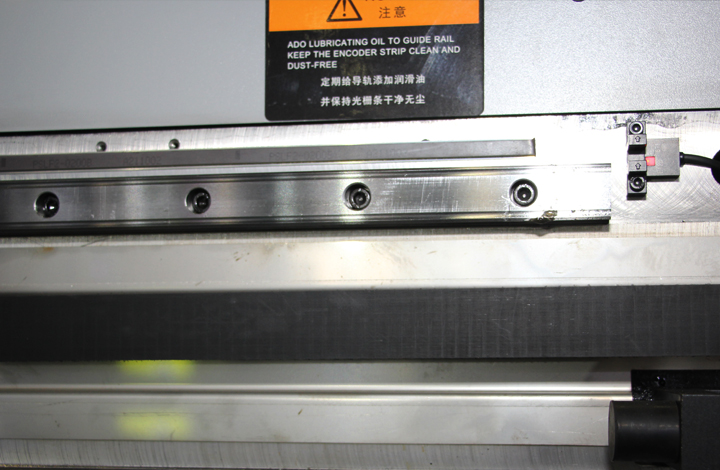

MEIXI MX-3220UV Flatbed GEN6 UV Printer uses Magnetic Grid reduces the problem of printing position shift caused by ink falling on the metal grating scale after the quick spraying of the printhead, ensuring the cleanliness of the scale, which also indirectly improves the dirt resistance of the scale.

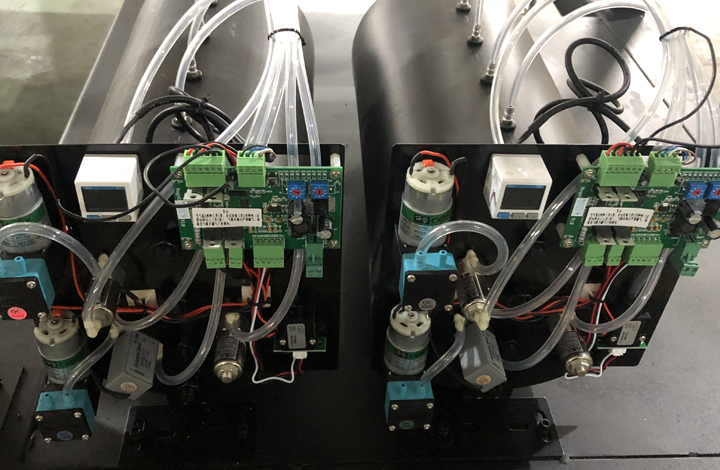

MEIXI MX-3220UV Flatbed GEN6 UV Printer uses Double Negative Pressure System. The ink supply process negative pressure device always maintain a balanced negative pressure value of the ink droplets, so that the ink is more uniform, and is not disturbed by the viscosity of the ink itself and the external environments, continuous ink supply to the printhead.

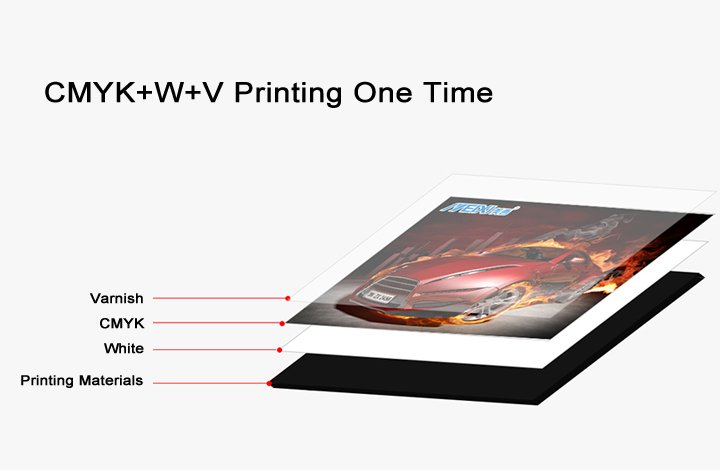

MEIXI MX-3220UV Flatbed GEN6 UV Printer support to print CMYK+W+V One Time. When the printing medium is made of transparent or other color materials, white ink is used for color reproduction preprocessing, so that the original The color of the body is no longer limited, and the varnish that can increase the gloss can get a more realistic and perfect printing effect.

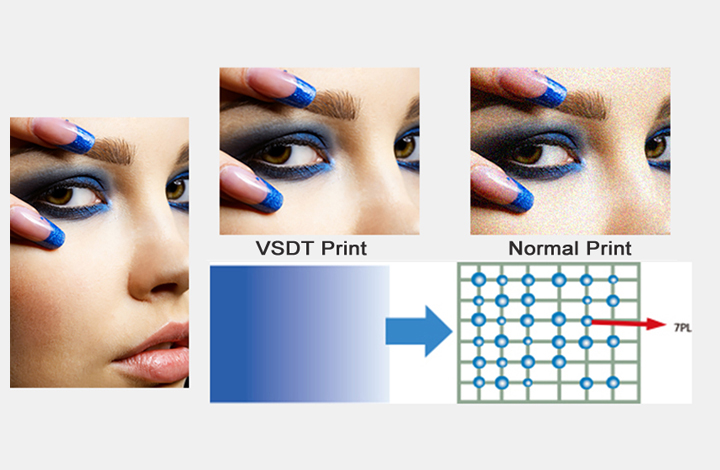

MEIXI MX-3220UV Flatbed GEN6 UV Printer support VSDT variable ink droplet technology refers to the technology that can control the size of the ink ejected from the nozzle. After the size of the ink droplet can be controlled, then when printing pictures, you can transition colors, gradient colors, or characters in some pictures. The printing effect of these parts of the skin is very delicate, and the overall printing effect is greatly improved, which makes the color saturation and fineness of the printed picture better.

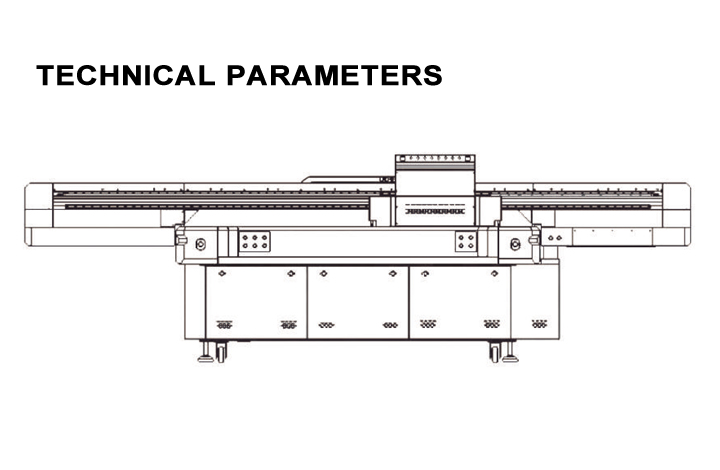

Heads Type: Ricoh GEN6
Heads Quantity: 2-10 GEN6
Max Printing Size: 2500*1300mm/98.42*51.18"
Print Height: 0-100mm/3.93" ( Accept Customized Height )
Ink Type: Environmental Friendly UV Ink
Printing Color: CMYK / CMYK, LC, LM + White + Varnish
Ink Supply Method: 2000ml Bulk Ink Supply System
Printing Table: 2*2.2kw Vacuum Air Pump and Five-Stage Suction Area
Print Head Control: Voltage of Temperature of Print Head Adjustable
UV Lights: Cold Light Source of LED UV
Rip Software: Photo Print (Standard) / ONXY (Optional)
Volt and Power: 110/220V 50/60HZ
If you need our products please write down any questions, we will reply as soon as possible.
