MX-6090ESP UV Flatbed Printer, Printing Size: 60*90cm, Print Head: Epson XP600 (3Pcs), Application: Acrylic, Wood, Glass, Metal, etc Printing Color: CMYK / CMYK, LC, LM + White + Varnish. Printing Speed: 4pss 12 Sqm/H.

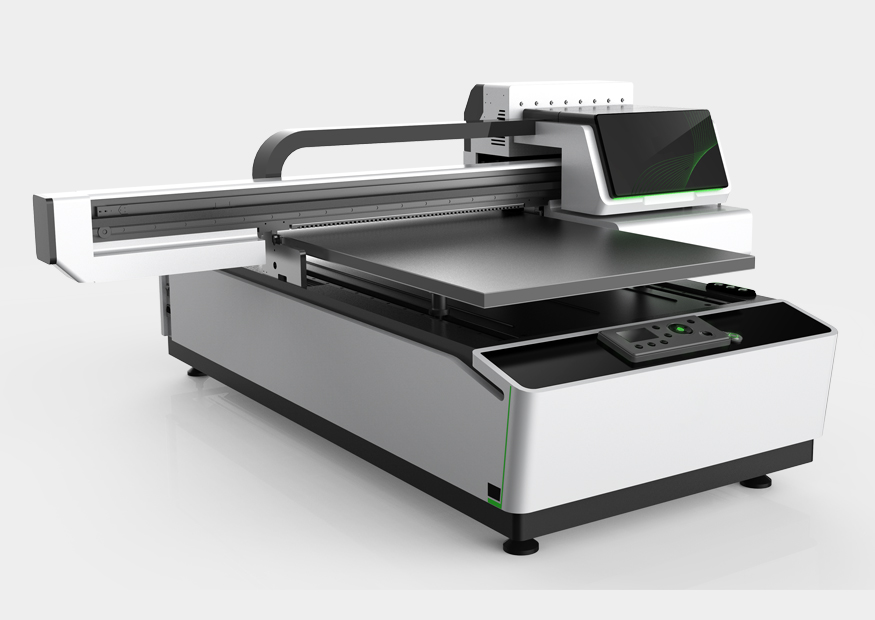

MX-6090ESP UV Flatbed Printer
|Printhead||3Pcs Epson XP600|
CMYK / CMYK, LC, LM + White + Varnish
Print File Format
|BMP, TIF, JPG, PDF Etc.|
|Color Management||ICC Based; Density & Curves Adjustable|
|Working Environment Temperature||20C-35C (68F-95F)|
|Working Environment Humidity||35%-65%Rh|
|Printing Speed （C M Y K）||
4pass 4 Sqm/H
|Printing Speed （C M Y K LC LM + W + V）||
4pass 3.5 Sqm/H
MEIXI MX-6090ESP Flatbed UV Printer use Epson F1080 printhead, High precision,qualitatively improved accuracy. Cost-effective head, Independent printing of four channels in four colors, each color as 300 dpi, only 2 pcs heads for C MYK+ W. High speed. The nozzle column spacing is small, suitable for printing irregular materials such as cylinders. Industrial-grade print head, the printhead and the cable are separated, easy to replace.
MEIXI MX-6090ESP Flatbed UV Printer use industrial design print carriage with bottom heating. Customer can choose CMYK/CMYK, LC, LM + W + V according to requirements.The cartridges are temperature-adjustable and can easily cope with various external temperatures.
MEIXI MX-6090ESP Flatbed UV Printer use of THK linear guide makes the equipment run smoothly, long service life, no maintenance under normal working environment within ten years long life; greatly reduce the noise generated by the equipment in the process of high-speed movement, noise can be controlled within 40 decibels.
TMEIXI MX-6090ESP Flatbed UV Printer use Integrated honeycomb platform, hard oxidation process on the surface. It is easy for the operator to operate the ball valve during the use of the machine, and the personnel do not need to move to the side of the machine to reduce the movement of personnel.

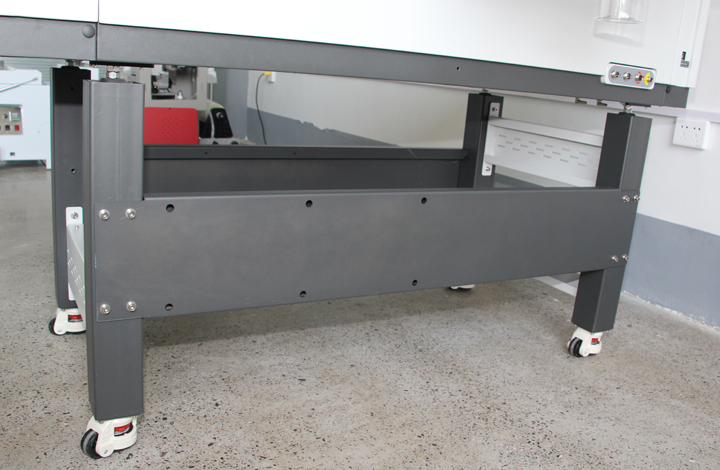

MEIXI MX-6090ESP Flatbed UV Printer use industrial design Steel Frame to ensure that the accuracy of the machine will not be lost during long-term operation, so that the service life of the machine is 5-6 times higher than that of an ordinary bed. The bed is processed by high precision CNC gantry milling machine to ensure the geometric accuracy of the equipment. All the installation holes of the equipment are completed by machining center in one time, which ensures the accuracy of the total assembly of the equipment.
MEIXI MX-6090ESP Flatbed UV Printer Adopt grinding screw drive control device, which can greatly improve the inking accuracy and make the band streaks generated by inking error significantly reduced; configure high-speed silent imported screw, high precision, low noise, wear resistance, to ensure accurate positioning.
MEIXI MX-6090ESP Flatbed UV Printer with anti-static bar can avoid the occurrence of static electricity between the nozzle and the material during the normal printing process of the UV flatbed printer, which will cause the phenomenon of flying ink during the printing process.

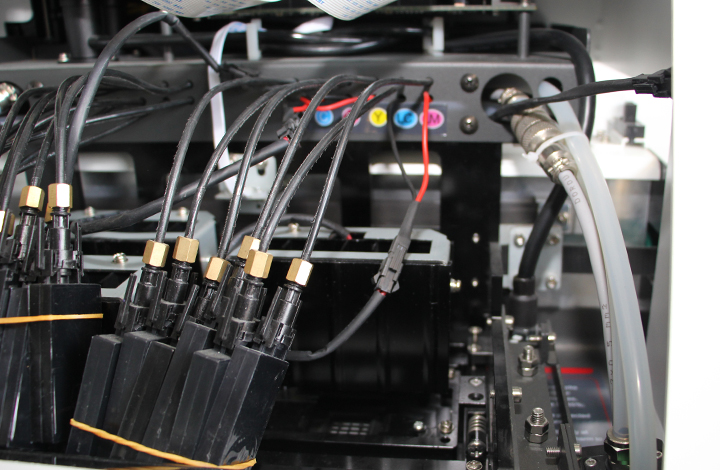

MEIXI MX-6090ESP Flatbed UV Printer uses bulk ink supply system. The ink supply process negative pressure device always maintain a balanced negative pressure value of the ink droplets, so that the ink is more uniform, and is not disturbed by the viscosity of the ink itself and the external environments, continuous ink supply to the printhead.
MEIXI MX-6090ESP Flatbed UV Printer support to print CMYK+W+V One Time. When the printing medium is made of transparent or other color materials, white ink is used for color reproduction preprocessing, so that the original The color of the body is no longer limited, and the varnish that can increase the gloss can get a more realistic and perfect printing effect.
MEIXI MX-6090ESP Flatbed UV Printer support VSDT variable ink droplet technology refers to the technology that can control the size of the ink ejected from the nozzle. After the size of the ink droplet can be controlled, then when printing pictures, you can transition colors, gradient colors, or characters in some pictures. The printing effect of these parts of the skin is very delicate, and the overall printing effect is greatly improved, which makes the color saturation and fineness of the printed picture better.
Heads Type: Epson F1080
Heads Quantity: 3 F1080
Max Printing Size: 600*900mm/98.42*51.18"
Print Height: 0-100mm/3.93" ( Accept Customized Height )
Ink Type: Environmental Friendly UV Ink
Printing Color: CMYK / CMYK, LC, LM + White + Varnish
Ink Supply Method: Bulk Ink Supply System
Print Head Control: Voltage of Temperature of Print Head Adjustable
UV Lights: Cold Light Source of LED UV
Rip Software: RipPrint / Photo Print / ONXY
Volt and Power: 110/220V 50/60HZ
