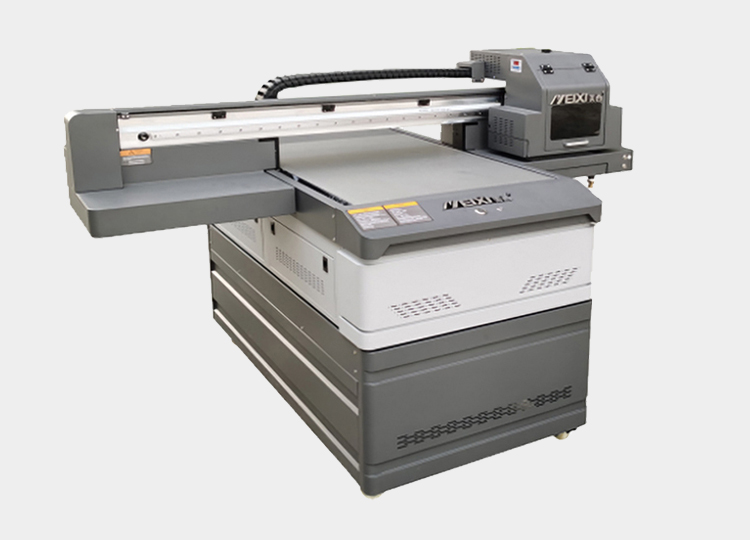

MX-9060UV G5i Flatbed Printer

MEIXI MX-9060UV G5i Flatbed Printer with Ricoh G5i Print Heads, Printing Size: 600*900mm. Application: Acrylic, Wood, Glass, Metal, etc Printing Color: CMYK / CMYK, LC, LM + White + Varnish. Printing Speed: 12 Sqm/H.

product overview



    MX-9060UV G5i Flatbed Printer

    Printing Size 900*600mm/35.43*23.62”
    Printhead  Ricoh G5i Printhead
    Print Color

    CMYK / CMYK, LC, LM + White + Varnish

    RIP Software


    Print File Format

    BMP, TIF, JPG, PDF Etc.
    Color Management ICC Based; Density & Curves Adjustable
    Power Supply

    50HZ/60HZ, 110~220V

    Working Environment Temperature 20C-35C (68F-95F)
    Working Environment Humidity 35%-65%Rh
    Printing Speed 12 Sqm/H

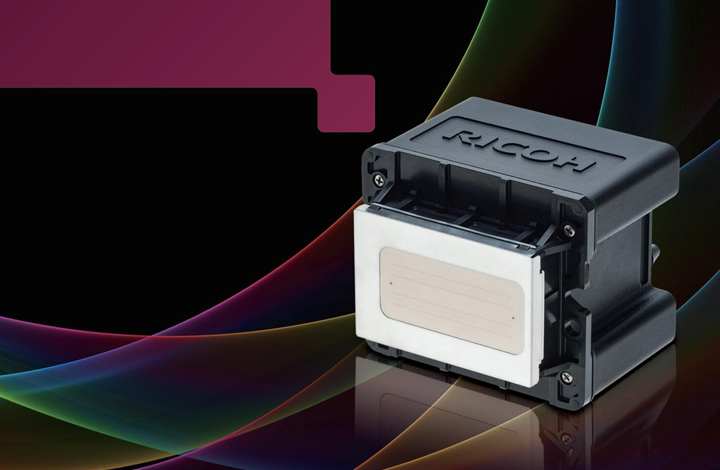

        • Ricoh G5i Print Head

          MEIXI MX-9060UV G5i Flatbed UV Printer use Ricoh  G5i industrial printhead, High precision, the minimum ink drop as 2.5 PL, qualitatively improved accuracy. Cost-effective head, Independent printing of four channels in four colors, each color as 300 dpi, only 2 pcs heads for C MYK+ W. High speed, the ignition frequency is up to 40KHz. The nozzle column spacing is small, suitable for printing irregular materials such as cylinders. Industrial-grade print head, the printhead and the cable are separated, easy to replace.

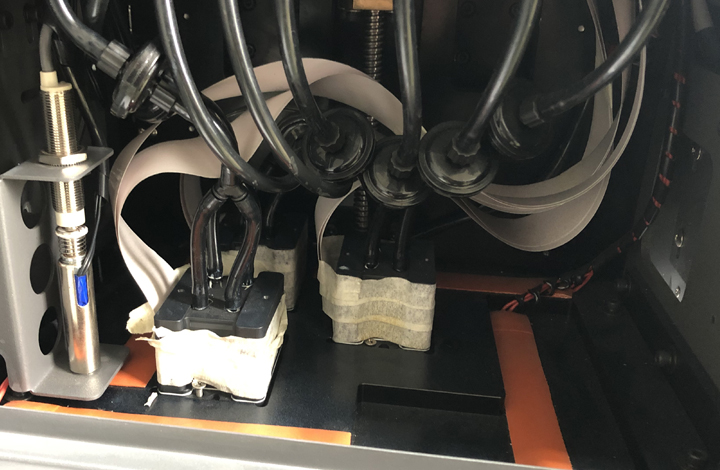

        • INDUSTRIAL DESIGN Print Carriage

          MEIXI MX-9060UV G5i Flatbed UV Printer use industrial design print carriage with bottom heating. Customer can choose CMYK/CMYK, LC, LM + W + V according to requirements.The cartridges are temperature-adjustable and can easily cope with various external temperatures.

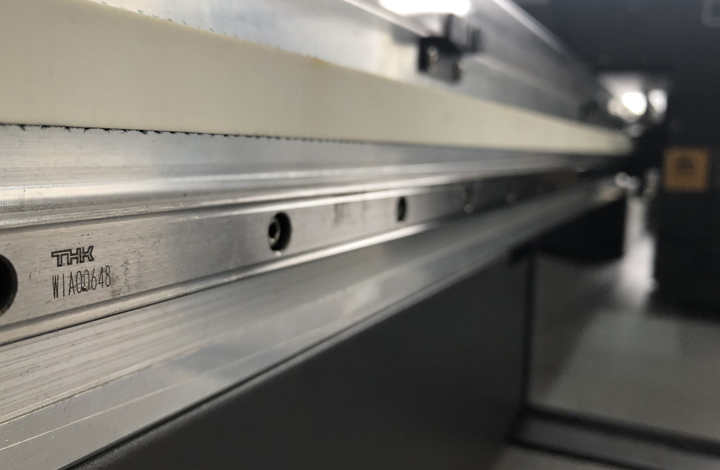

        • THK Linear Guide

          MEIXI MX-9060UV G5i Flatbed UV Printer use of THK linear guide makes the equipment run smoothly, long service life, no maintenance under normal working environment within ten years long life; greatly reduce the noise generated by the equipment in the process of high-speed movement, noise can be controlled within 40 decibels.


        • Integrated Honeycomb Platform

          TMEIXI MX-9060UV G5i Flatbed UV Printer use Integrated honeycomb platform, hard oxidation process on the surface. It is easy for the operator to operate the ball valve during the use of the machine, and the personnel do not need to move to the side of the machine to reduce the movement of personnel.

        • industrial design Steel Frame

          MEIXI MX-9060UV G5i Flatbed UV Printer use industrial design Steel Frame to ensure that the accuracy of the machine will not be lost during long-term operation, so that the service life of the machine is 5-6 times higher than that of an ordinary bed. The bed is processed by high precision CNC gantry milling machine to ensure the geometric accuracy of the equipment. All the installation holes of the equipment are completed by machining center in one time, which ensures the accuracy of the total assembly of the equipment.

        • Grinding Lead Screw

          MEIXI MX-9060UV G5i Flatbed UV Printer Adopt grinding screw drive control device, which can greatly improve the inking accuracy and make the band streaks generated by inking error significantly reduced; configure high-speed silent imported screw, high precision, low noise, wear resistance, to ensure accurate positioning.

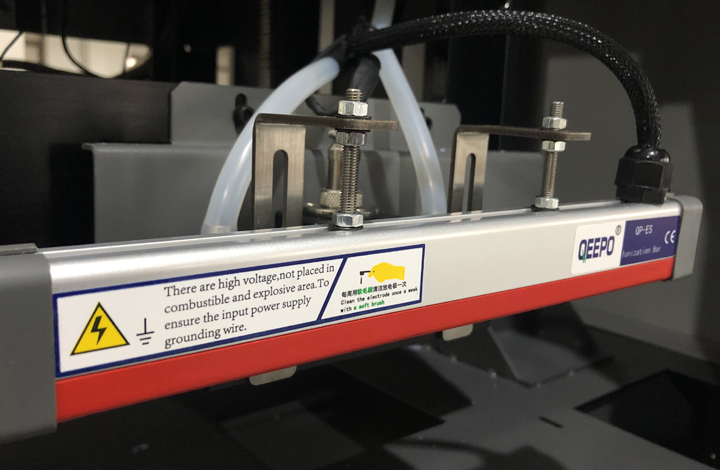

        • anti-static bar

          MEIXI MX-9060UV Flatbed G5i UV Printer with anti-static bar can avoid the occurrence of static electricity between the nozzle and the material during the normal printing process of the UV flatbed printer, which will cause the phenomenon of flying ink during the printing process.

        • Double Negative Pressure System

          MEIXI MX-9060UV Flatbed G5i UV Printer uses Double Negative Pressure System. The ink supply process negative pressure device always maintain a balanced negative pressure value of the ink droplets, so that the ink is more uniform, and is not disturbed by the viscosity of the ink itself and the external environments, continuous ink supply to the printhead.

        • CMYK+W+V Printing One Time

          MEIXI MX-9060UV Flatbed G5i UV Printer support to print CMYK+W+V One Time. When the printing medium is made of transparent or other color materials, white ink is used for color reproduction preprocessing, so that the original The color of the body is no longer limited, and the varnish that can increase the gloss can get a more realistic and perfect printing effect.

        • VSDT Variable Ink Droplet

          MEIXI MX-9060UV Flatbed G5i UV Printer support VSDT variable ink droplet technology refers to the technology that can control the size of the ink ejected from the nozzle. After the size of the ink droplet can be controlled, then when printing pictures, you can transition colors, gradient colors, or characters in some pictures. The printing effect of these parts of the skin is very delicate, and the overall printing effect is greatly improved, which makes the color saturation and fineness of the printed picture better.


          Model: MX-9060UV
          Heads Type: Ricoh G5i
          Heads Quantity: 3 Ricoh G5i
          Max Printing Size: 900*600mm/35.43*23.62”"
          Print Height: 0-100mm/3.93" ( Accept Customized Height )
          Ink Type: Environmental Friendly UV Ink
          Printing Color: CMYK / CMYK, LC, LM + White + Varnish
          Ink Supply Method: 2000ml Bulk Ink Supply System
          Print Head Control: Voltage of Temperature of Print Head Adjustable
          UV Lights: Cold Light Source of LED UV
          Rip Software: Photo Print (Standard) / ONXY (Optional)
          Volt and Power: 110/220V 50/60HZ
