As Meixi UV flatbed printer is more and more widely used, the maintenance of the machine also began to be attached to it, because the correct maintenance method can not only reduce some unnecessary trouble, and can save a large amount of maintenance costs.
We know that the most core components of the UV flatbed printer is the nozzle, so do a good job of nozzle maintenance work is particularly important, the following to provide some of the correct nozzle maintenance methods, for reference.
1.The machine has been used for a long time, it is easy to print unclear, nozzle clogging. When the temperature is too high, the ink volatilization speed becomes faster, after opening the ink is not used for a long time, it may cause printing discoloration, the temperature change will also cause color changes. Experts recommend UV flatbed printer the best operating room temperature of 23 ℃ -28 ℃.
2.Before the machine is turned on every morning, first to the guide rod on the stain clean, in the guide rod on the lubricant, be careful not to let the lubricant drip into the ink tray inside, if the nozzle is covered with lubricant, it will cause the nozzle “serious clogging”.
3.Every day after the completion of the machine, the printhead surface stains to clean, the pump attachment of the small scraper should also be cleaned with alcohol dry static.
4. Every day before shutting down, to let the printer head back to the initial position (the printer in the suspended state of the printer head automatically back to the initial position). The advantage of doing so is to reduce the next time you turn on the printer to re-clean the nozzle operation waste of ink, there is a nozzle in the initial position can be sealed by the protective cover, so that the nozzle is not easy to block.
UV flatbed printer printhead is a very precise components, maintenance although some trouble, but I hope we pay attention to it, do not wait for the problem to appear and then repair, it will be more trouble than it’s worth!

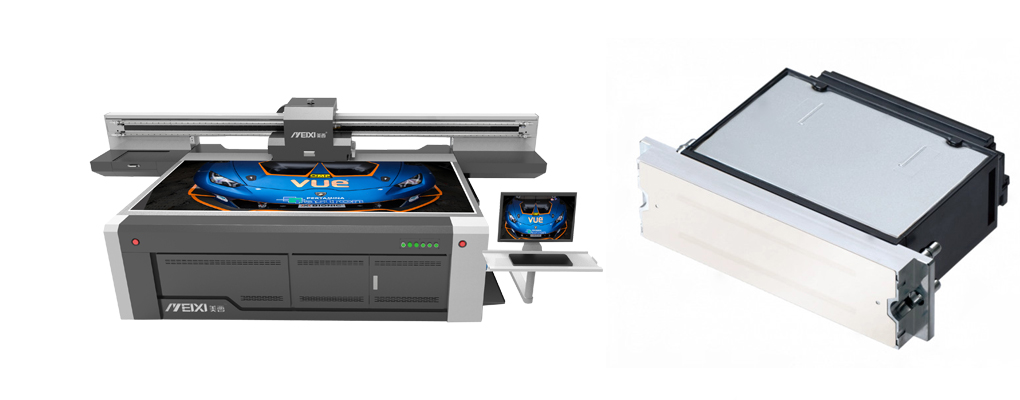

Meixi UV printers use Ricoh Gen5 / Gen6 and other industrial-grade printheads, faster printing speed, higher printing accuracy, longer service life of the printheads, to achieve batch production. In terms of maintenance, all-steel printheads are easier to clean, corrosion-resistant, corrosion-resistant, and more convenient to maintain.
